Clavicle Locking Plate

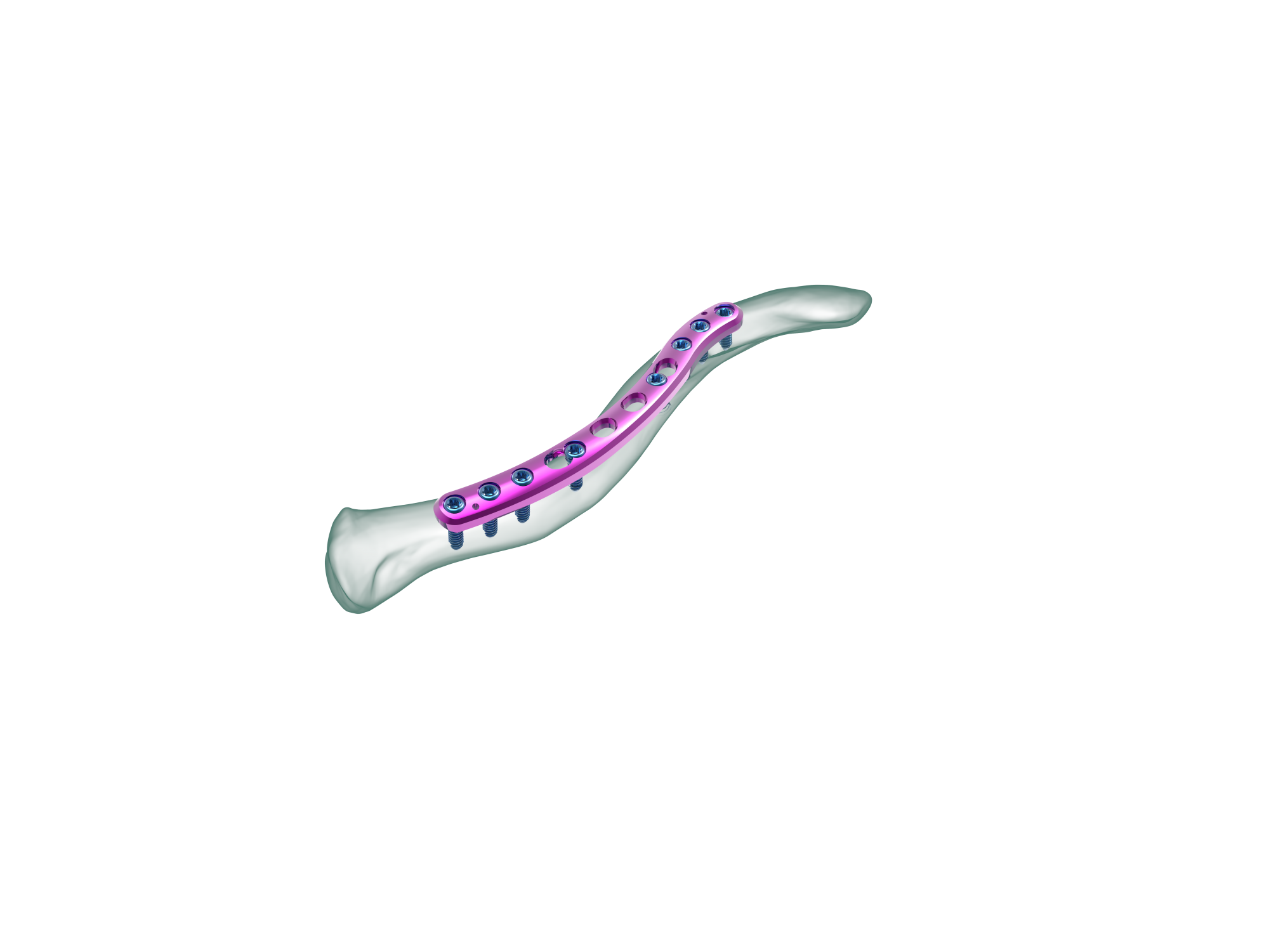

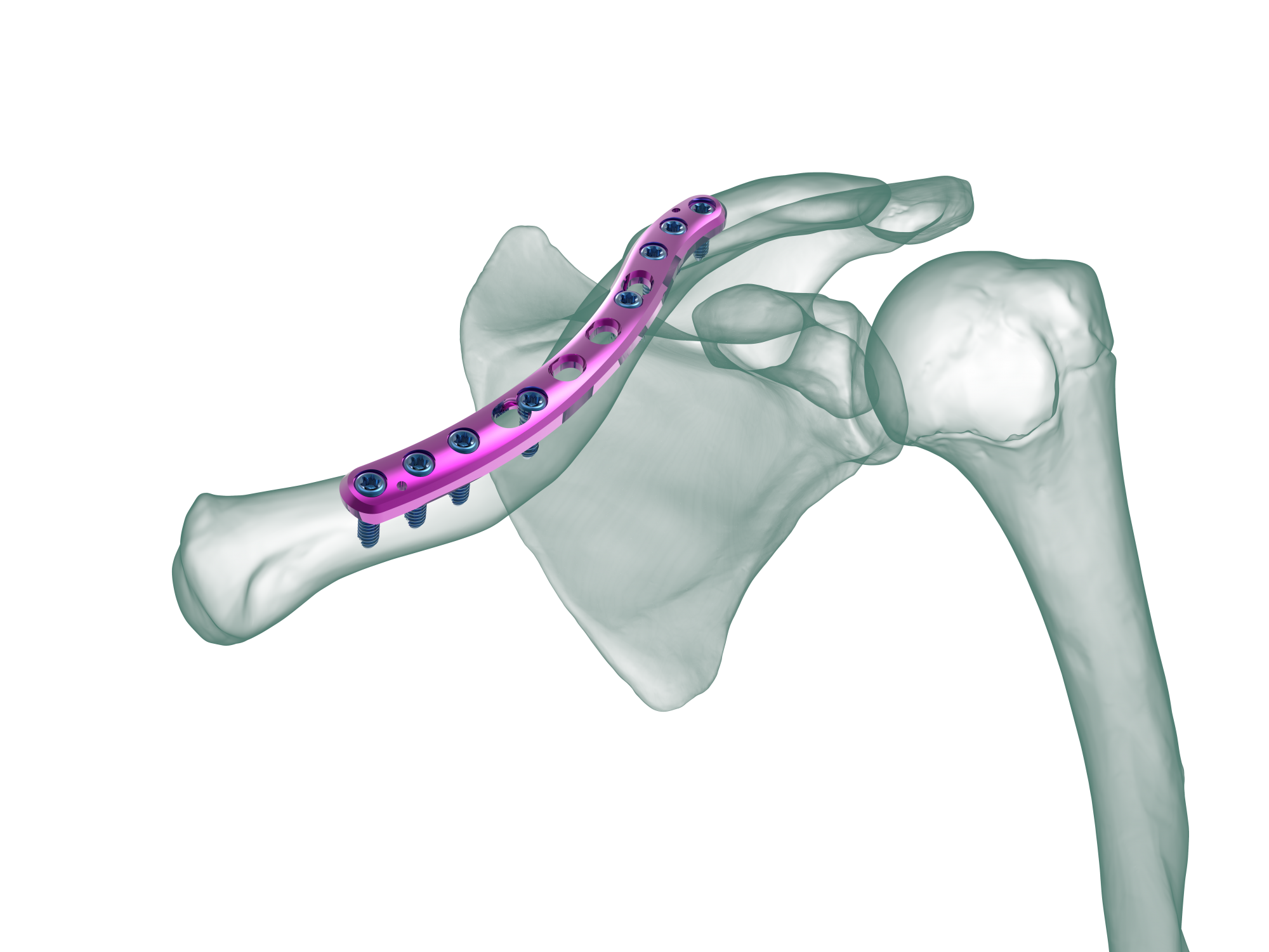

TRUE LOCK Clavicle Anatomic Plate

TRUE LOCK Clavicle Anatomic Plates are indicated for; malunions, nonunions and osteotomies of the clavicle

Clavicle fractures constitute %2,6-%4 of adult patientsfractures and %35 of shoulder fractures. Anatomically they divide 3 parts medial(%80), middle (shaft) (%15) lateral (%5).

The clavicle is the first ossified bone and the ossification center closes last. It is in the form of “S” and convex to the medial anterior and concave to the lateral anterior.

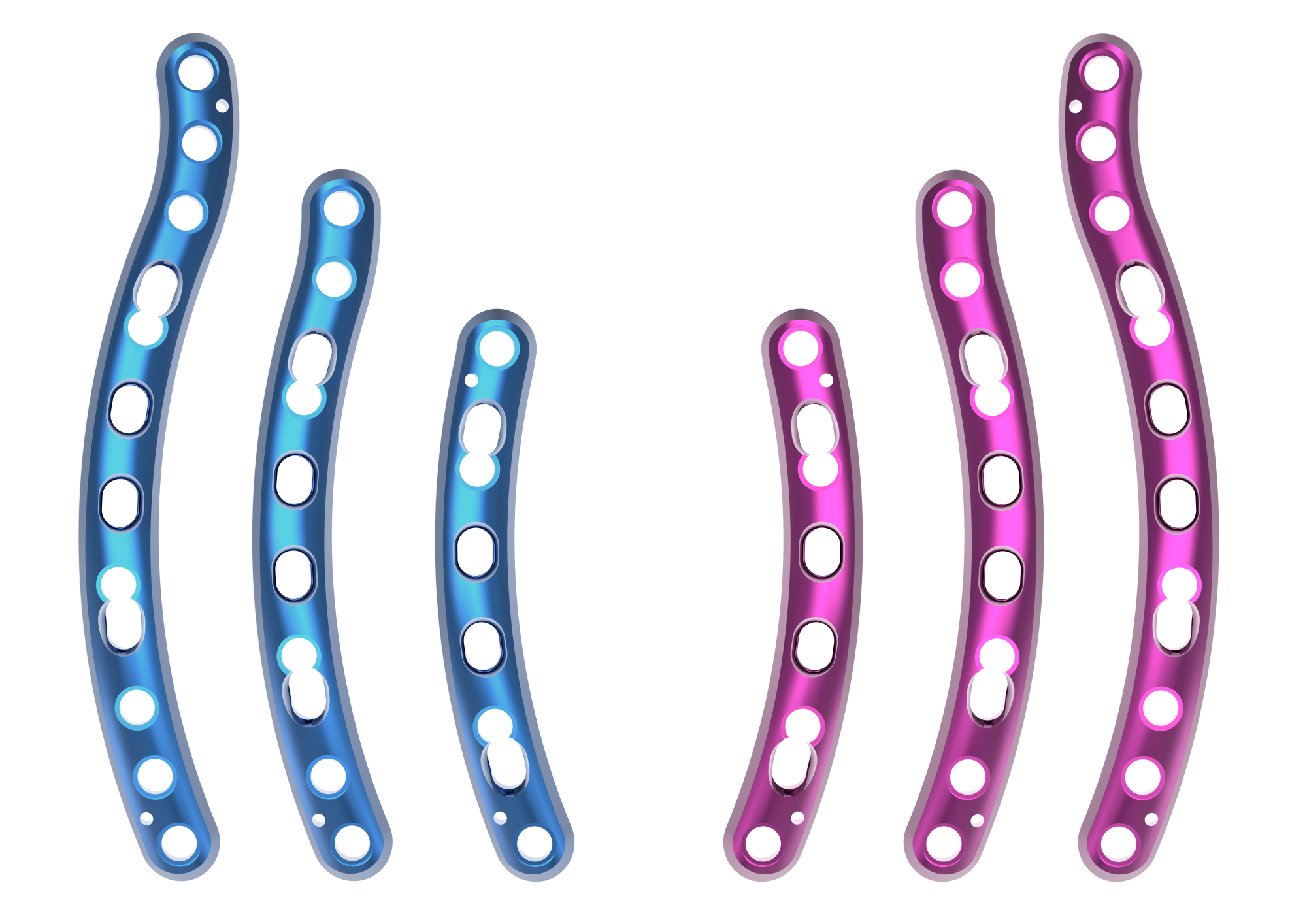

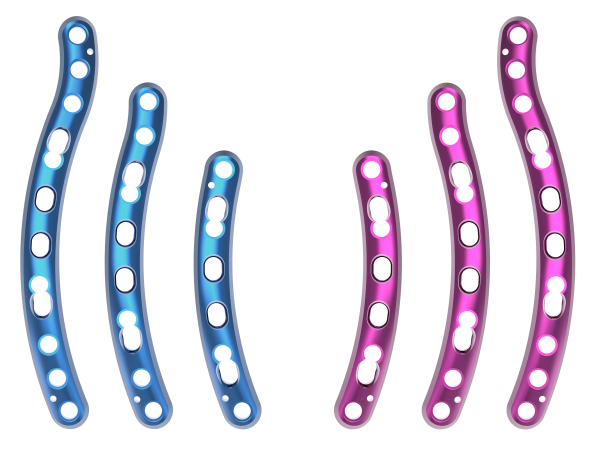

Anatomical plate; right & left

5 hole option between 4-8

TRUE LOCK Clavicle Anatomic Plates are made of Ti6Al4V ELI material (ASTM F136)

Low plate-and-screw profile and rounded plate edges minimize potential for tendon and soft tissue irritation.
TRUE LOCK Clavicle Anatomic Plates es are precontoured for anatomic fit. No need to bend during the surgery.
Elongated Combi hole in the neck and shaft facilitate plate adjustment and allow locking or compression options.
The combi-hole pro- vides flexibility of axial compression and locking capability throughout the length of the plate shaft.
Kirschner wire holes accept Kirschner wires (up to 1.5 mm) to temporarily fix the plate to the bone , to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the bone.
Images Gallery
