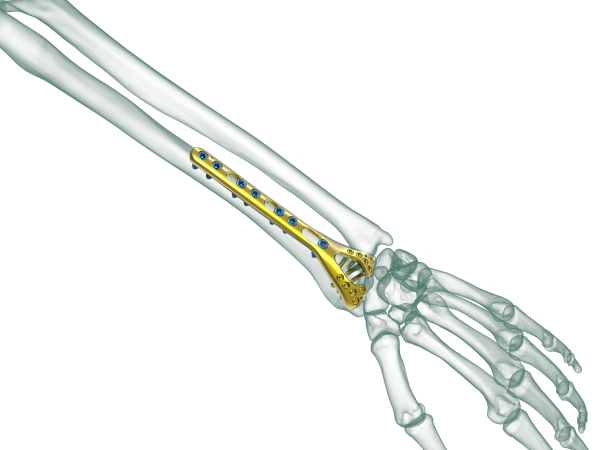

TRUE LOCK Distal Radius Dorsal Anatomic Plate
TRUE LOCK Distal Radius Dorsal Anatomic Plates are
indicated for
Dorsally displaced fractures
Extra-articular fractures with metaphyseal defect
(AO
classification 23-A3)
Open joint reconstruction (AO classification 23-C1,
C2,
C3)
Combination of distal radius with carpal and metacarpal fractures
Corrective osteotomies
Anatomical plate; right & left
3
hole option between 3-7
TRUE LOCK Distal Radius Dorsal Anatomic Plates are
made
of Ti6Al4V ELI material (ASTM F136)
1
The plate is made of Ti6Al4V ELI material
Low plate-and-screw profile and rounded plate edges minimize potential for tendon and soft tissue irritation.
The combi-hole pro- vides flexibility of axial compression and locking capability throughout the length of the plate shaft.
Elongated Combi holes in the neck and shaft facilitate plate adjustment and allow locking or compression options.
Kirschner wire holes accept Kirschner wires (up to 1.5 mm) to temporarily fix the plate to the radius , to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the radius.
