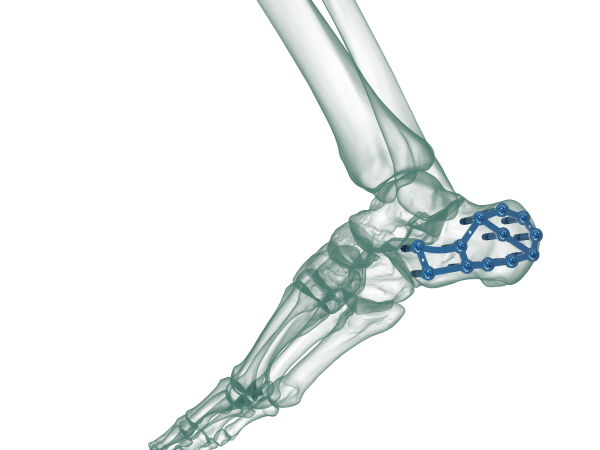

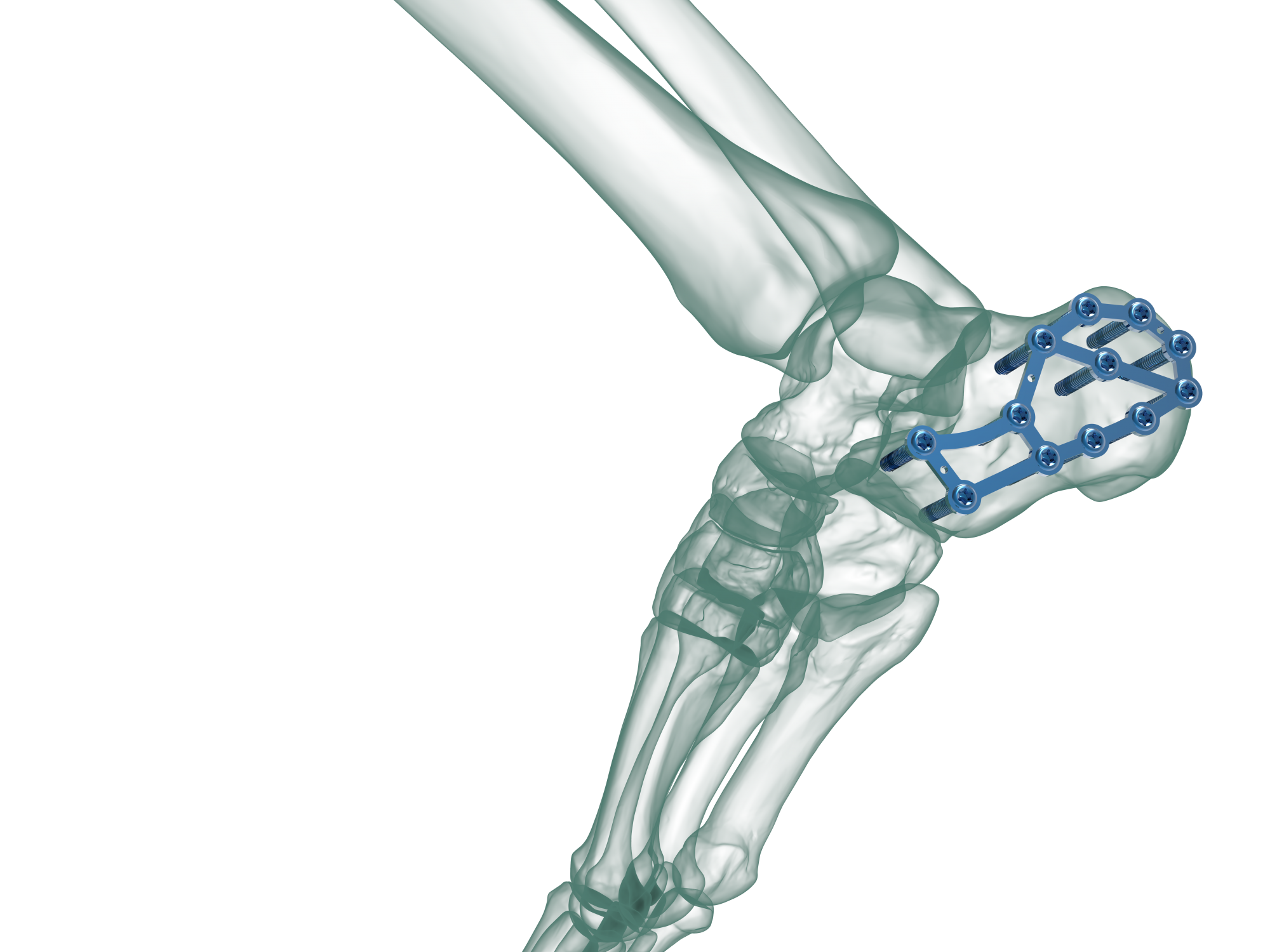

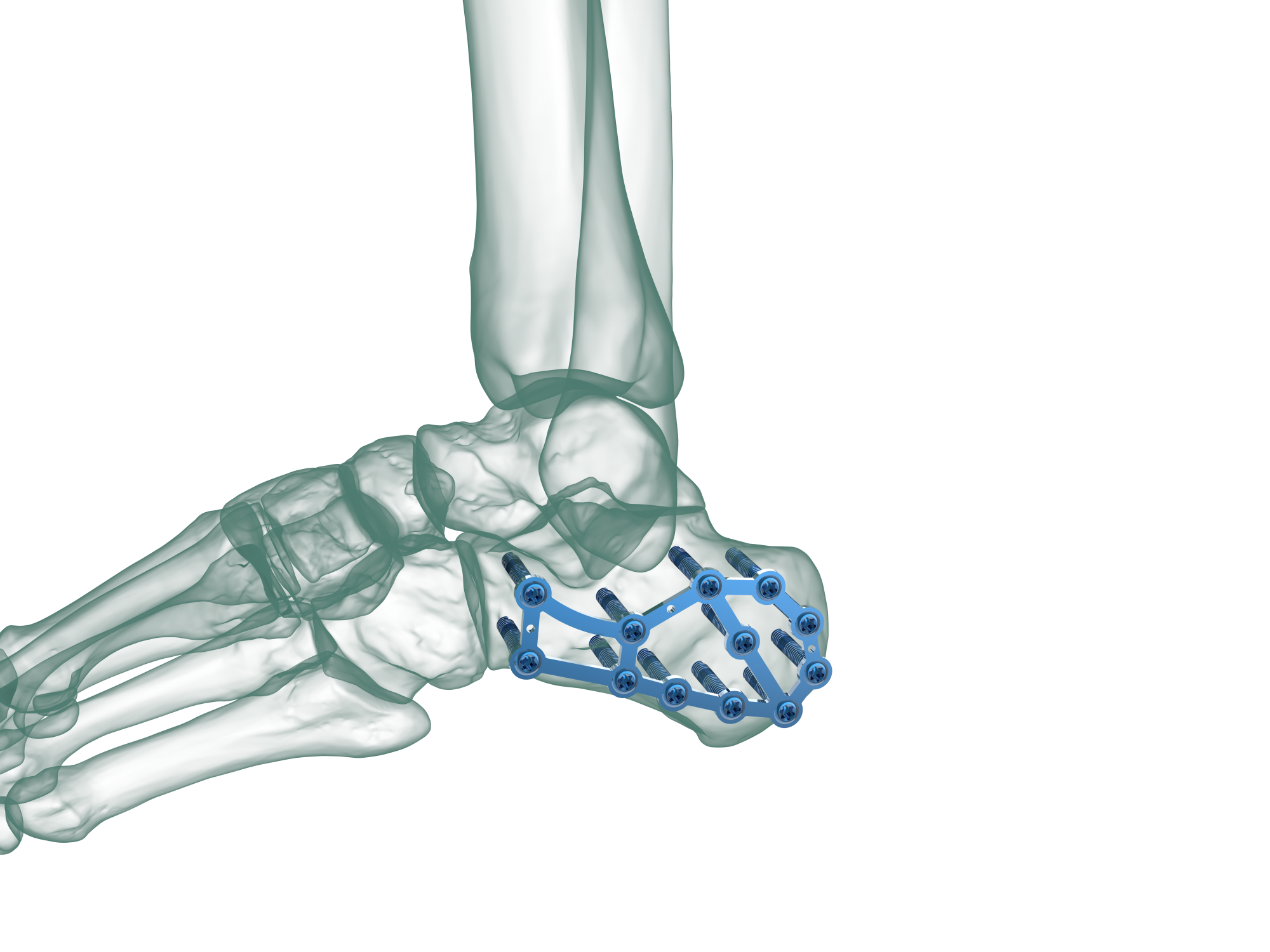

TRUE LOCK Calcaneus Plate

TRUE LOCK Calcaneus Plates are indicated for fractures and osteotomies of the calcaneus including, but not limited to, extra-articular, intra-articular, joint depression, tongue-type, and severely comminuted fractures.

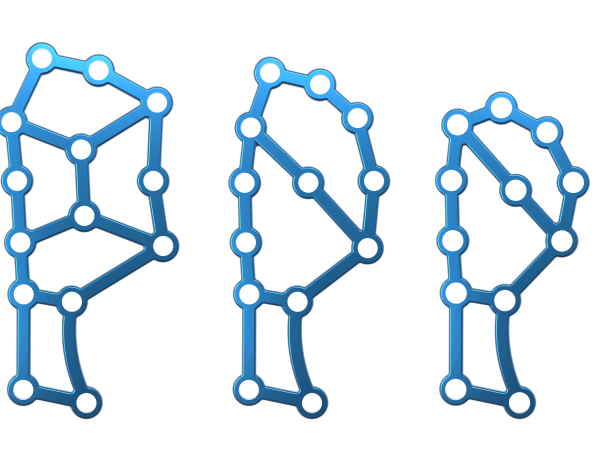

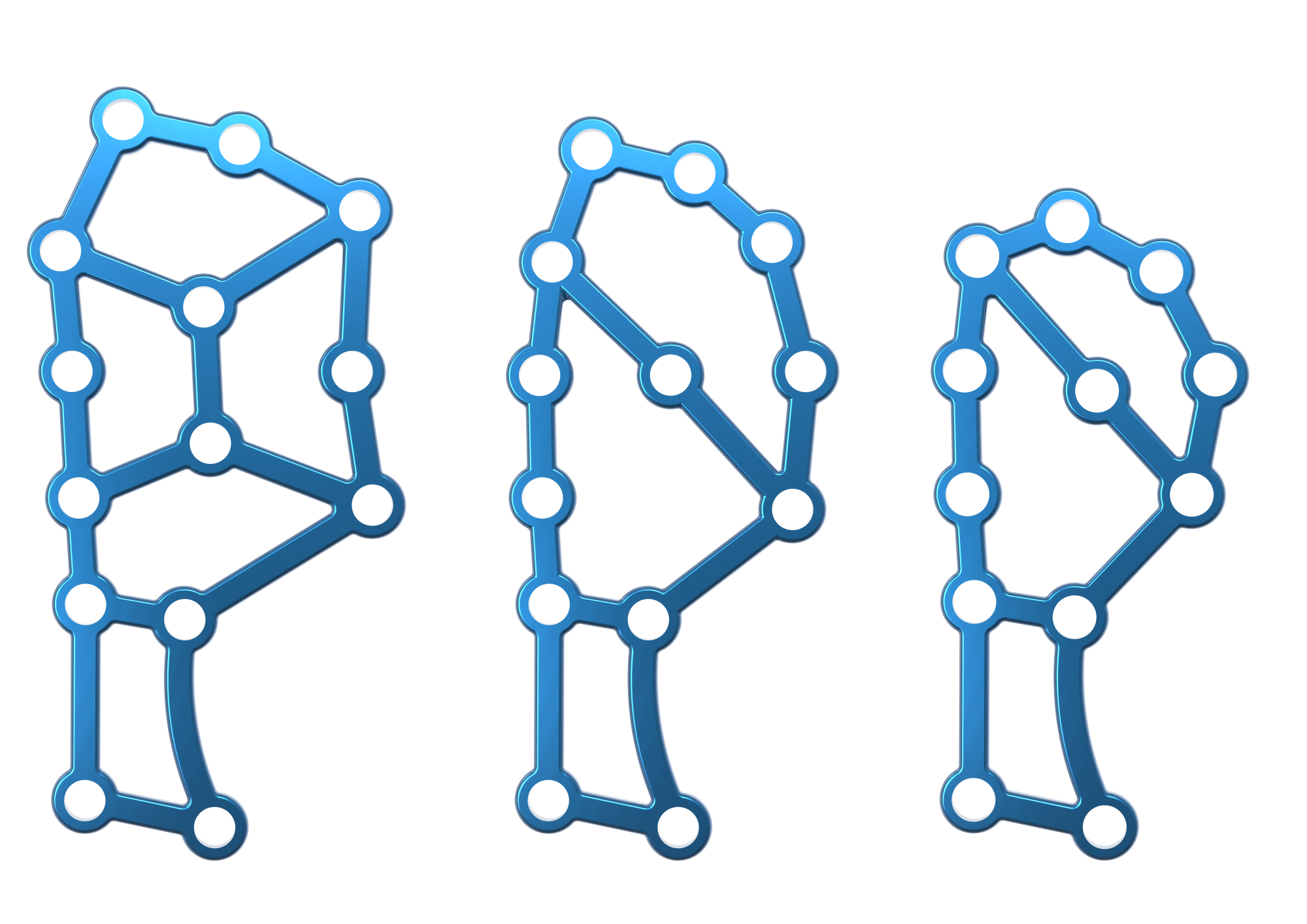

3 different size option; mini 12 hole ,short 13 hole ,long 14 hole

TRUE LOCK Calcaneus Plate are made of Ti6Al4V ELI material (ASTM F136)

Documents

Features

14 locking holes address multiple fracture patterns.

Extensile lateral or sinus tarsi approach.

Low-profile (1,5 mm)

Anatomically contoured

At the cancellous part of the bone near the joint, 4,0 mm cancellous locking screw option supports plate and screw fit well; prevents it from pull out.

Images Gallery
